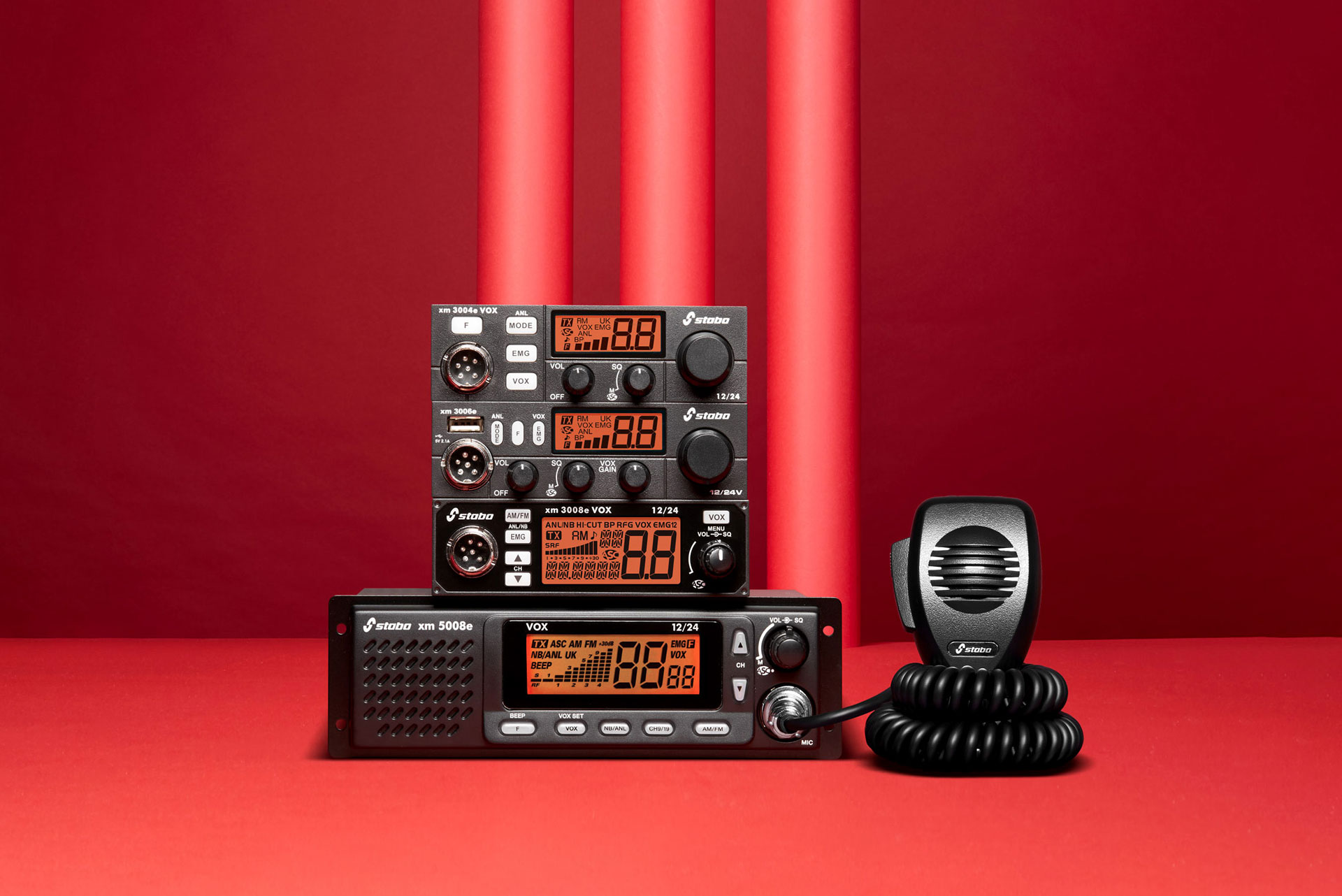

xm 3008e VOX 12/24

all-in-one Europe CB radio

xm 3008e VOX 12/24

VOX function | E24-certified

6 frequency bands | efficient 24 V operation | Automatic Squelch Control

eligible for subsidies according to the “de minimis” directive

Art. no.: 30119

Efficient 24 V operation without additional heat development

E24-certified

  • Super Vox (voice-operated transmission) switchable
  • Noise Gate Amplifier
  • XL Multifunction-LCD 7 backlight colors
  • Emergency-key
  • ANL automatic noise limiter, switchable
  • NB switchable
  • Hi-Cut switchable
  • Microphone amplifier
  • RF Gain
  • Key Beep, Roger beep
  • AM/FM
  • TOT (Time Out timer)
  • 6-pin microphone socket
  • socket for external loudspeaker (3,5 mm)
  • jack for external VOX-microphone (2,5 mm)
  • high-quality UP/DOWN microphone (Electret)

Channels

EU
40 FM (4 W), 40 AM (4 W)


EC
40 FM (4 W) CEPT


d
80 FM (4 W), 40 AM (4 W)

PL
40 FM (4 W), 40 AM (4 W)
With a carrier offset of -5 kHz

U
40 FM (4 W) UK
40 FM (4 W) CEPT

RU
27 FM (4 W), 27 AM (4 W)

For the current regulations for transmission and reception please click here

Specifications

Art. no.:
30119

Dimensions & weight:
Dimensions: 115 x 35 x 165 mm
Weight: 600 g

Scope of supply:
CB radio set
Elektret mikrophone
Mounting bracket and fixing screws
DC connecting cable
Operating instructions D/GB

xm3008e in slide-in bracket
Art. no.: 30129

Dimensions & weight:
Dimensions of slide-in bracket: 180 x 50mm (ISO 7736) DIN slot
Weight of slide-in bracket: 740 g
Weight xm3008e: 600 g



Optional accessories

Slide-in bracket

Slide-in bracket

for the DIN radio slot

Art. no.: 50229″

VOX-goose-neck-microphon

VOX-goose-neck-microphon

Length: 30cm

Art. no.: 71565

HP2

HP2

Art. no.: 70047

CBL500

CBL500

Art. no.: 70048

Support

Downloads
Operating instructions (PDF 3,6 MB)
Flyer (PDF 300 KB)
DoC

Zur Händlerliste

Errors and technical modifications reserved, design deviations possible.
