- Frontspeaker
- DIN-sized unit for standard car radio slot, removable
- LCD multifunction display with channel and frequency display
- 7 different display background colors
- 6 switchable frequency bands(
) - 5 programmable channel memory slots
- Scan function (channels and memory slots)
- Direct channel selection (priority channels 09/19)
- CTCSS (38 tones)
- 12/24V operation, no switching required
- VOX hands-free function, adjustable
- SQ manual squelch and ASC (Automatic Squelch Control), automatic noise suppression
- Filters: ANL, NB noise limiter, noise blanker
- Beep (key confirmation tone)
- Roger Beep (call tone)
- Mute function
- ToT (Time-out Timer), transmission time limit
- External speaker connection (8 Ohm, 3.5 mm jack)
- External microphone connection VOX-Mic (2.5 mm jack)
- Power connection cable 12/24VDC
- Certifications: CE, RoHS II, REACH, E-Mark
Specifications
Art. no.:
30128
Dimensions & Weight:
Dimensions: 187 mm x 58 mm x 86 mm (incl. heatsink)
Weight: 656 g without microphone

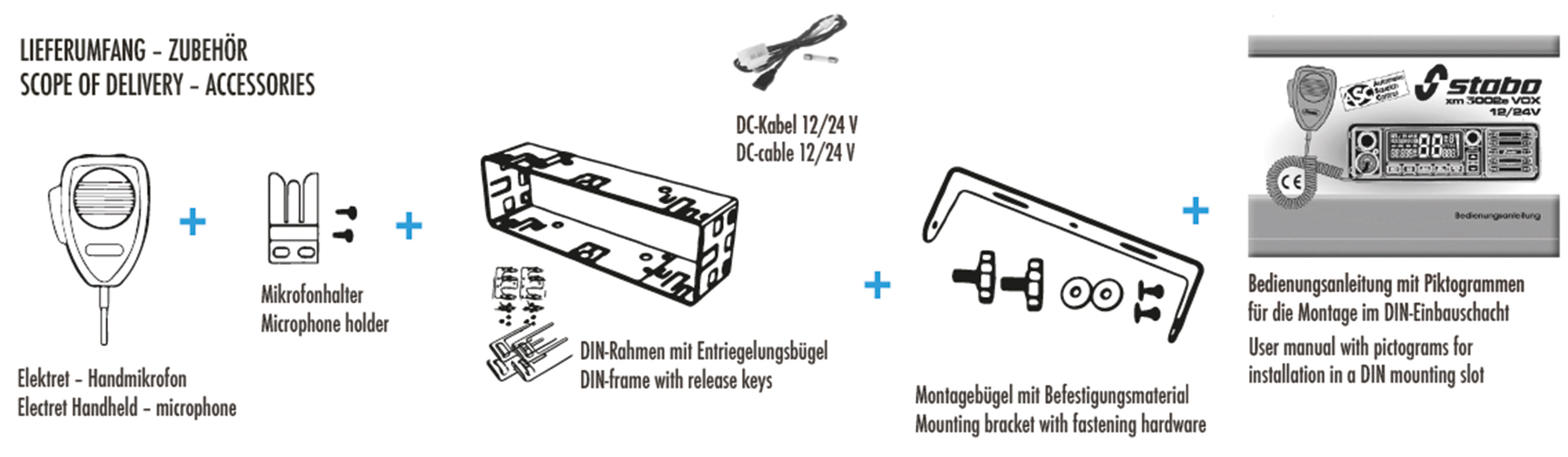

Scope of delivery:
1x CB mobile radio device stabo xm 3002e VOX 12/24 V
with power connection cable, pre-installed in DIN frame
2x Release brackets for DIN frame
1x Mounting bracket with knurled screws
1x Up/Down handheld microphone
1x Microphone holder with mounting material
User manual (bilingual, German + English)
Support
Errors and changes excepted. Model variations possible.
